HVD/HVDL Satellite Propulsion Valve - 10 MPa

Latching version available

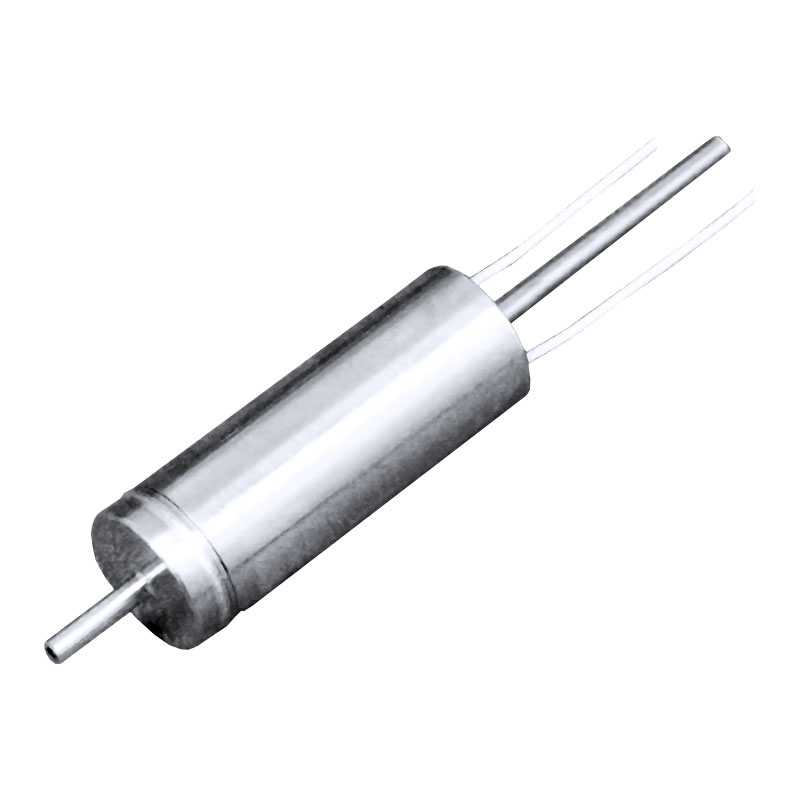

HVD/HVDL Satellite Propulsion Valve

Description

10 MPa pressure rating.

Compact and lightweight.

Specifications

Model Number
HVD-2-N1F
HVDL-2-N1F
Solenoid Type
Normally Closed
Latching
Orifice Diameter
0.4 mm
0.4 mm
CV Value
0.0045
0.0045
Port Connection
Pipe
Pipe
Operating Pressure Range
0 - 10 MPa (Inlet Port)
0 - 10 MPa (Inlet Port)
Temperature Range
0 - 70 ˚C *1
0 - 70 ˚C *1
Rated Voltage
12 VDC
12 VDC
Holding Voltage
3 VDC
N/A
Power Consumption
11 W (Rated Voltage)
0.7W (Holding Voltage)
10 W
Duty Cycle
Intermittent ED: 15%
(Maximum On Time: 1.0s)
with holding Voltage: Continuous
Intermittent ED: 20%
(Maximum On Time: 0.05 - 0.1s)
Sealing Material
FKM (Optionally FFKM)
FKM (Optionally FFKM)
Outer Dimensions
Dia. 10 × L55 mm
Dia. 10 × L55 mm
Weight
14g
14g

*1: The temperature range may change depending on the sealing material.

Note: Details including specifications may change at any time without notification.
